Warp 560 Features

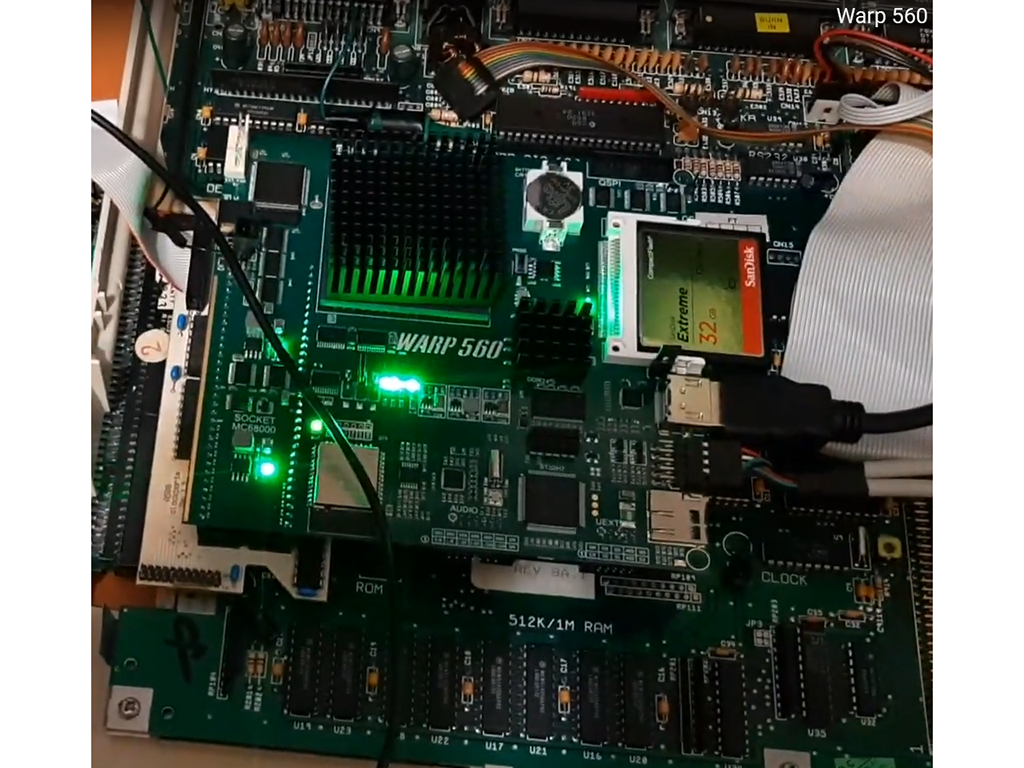

Warp 560 is a composite accelerator board for the Amiga 500 computer. It joins several features to create a great experience using your good, old Amiga

Powerful MC68060 Turbo (some rev.6 CPU’s working even up to 105MHz)

• Frequency can be easily switched by software

  • 64kB external L2 cache, for low latency access of DDR memory

  • (MC68060 CPU has to be provided by the customer)

256MB memory expansion

• 224MB for AmigaOS

  • 32MB for RTG graphics

Picasso96 compatible RTG graphics card

• Fast 128bit B litter, accelerating common 2D gfx operations

  • Fast CPU access to graphics memory due to unified memory architecture

  • Connector for optional Warped Vision Flicker Fixer

  • Automatic switching between Amiga and RTG modes
    (when working in tandem with Warped Vision)

Sana2 compatible WiFi network card

• Allowing internet and local network access

  • TCP/IP software stack (like Roadshow) required

16Bit Audio card with mixer

• High quality 16bit / 44.1kHz audio

  • 24bit onboard sampler for original Amiga audio

  • Mixer output pass through to Digital Video output

  • AHI Driver is not ready yet; it will be available with future updates

USB IO card

• HID (mouse/keyboard) support

  • Mass storage support (Boot-able)

  • Work even in the early boot menu, not requiring any drivers or additional USB stack

Fast micro SD card slot with DMA support

• Fast transfers (up to ~20MB/s)

  • CPU offload thanks to Direct-Memory-Access

  • Boo-table

Onboard Fast IDE (dedicated to CF cards)

• Fast access and transfers

  • Boot able

Fast-ROM

• 4 slots for different Kick starts, select-able by software

Onboard 400MHz ARM micro controller, acting as card chip set, accelerating data transfers, audio mixing, etc

توجه داشته باشید پس از سفارش و هماهنگی های مربوطه 3ماه کاری طول

می کشد تا سفارش شما ساخته و به دستتان برسد
