Onboard 40pin IDE controller
Easy installation, no soldering required
It is the ultimate card for users who would like to have a lot of Fast RAM memory, an IDE interface, 030 CPU and play WHDLoad games
With 030 onboard you will gain the ability to quit any WHDLoad game without rebooting your Amiga
Additional FPU socket (no FPU is included)
In order to use the full potential of this card it is strongly advised to install the MMULibs available at Aminet
The card has the ability to run at different clock speeds. 33, 42, 50, 60Mhz. All is set via jumpers
WHAT YOU WILL GET
1x Matze M68030-TK 64MB Fast Memory Turbo Board with an IDE controller for Amiga 500 / Amiga 500Plus / Amiga 2000
1x CF2IDE Adapter (Sandisk CF card NOT included)
1x 64-PIN CPU SOCKET (TO LIFT THE CARD UP)
PLEASE NOTE
Matthias 'Matze' Heinrichs is the designer & developer of this card - please support him and his works. The card is sold with his personal permission
DO NOT ATTACH ANY POWER TO THE CF2IDE ADAPTER

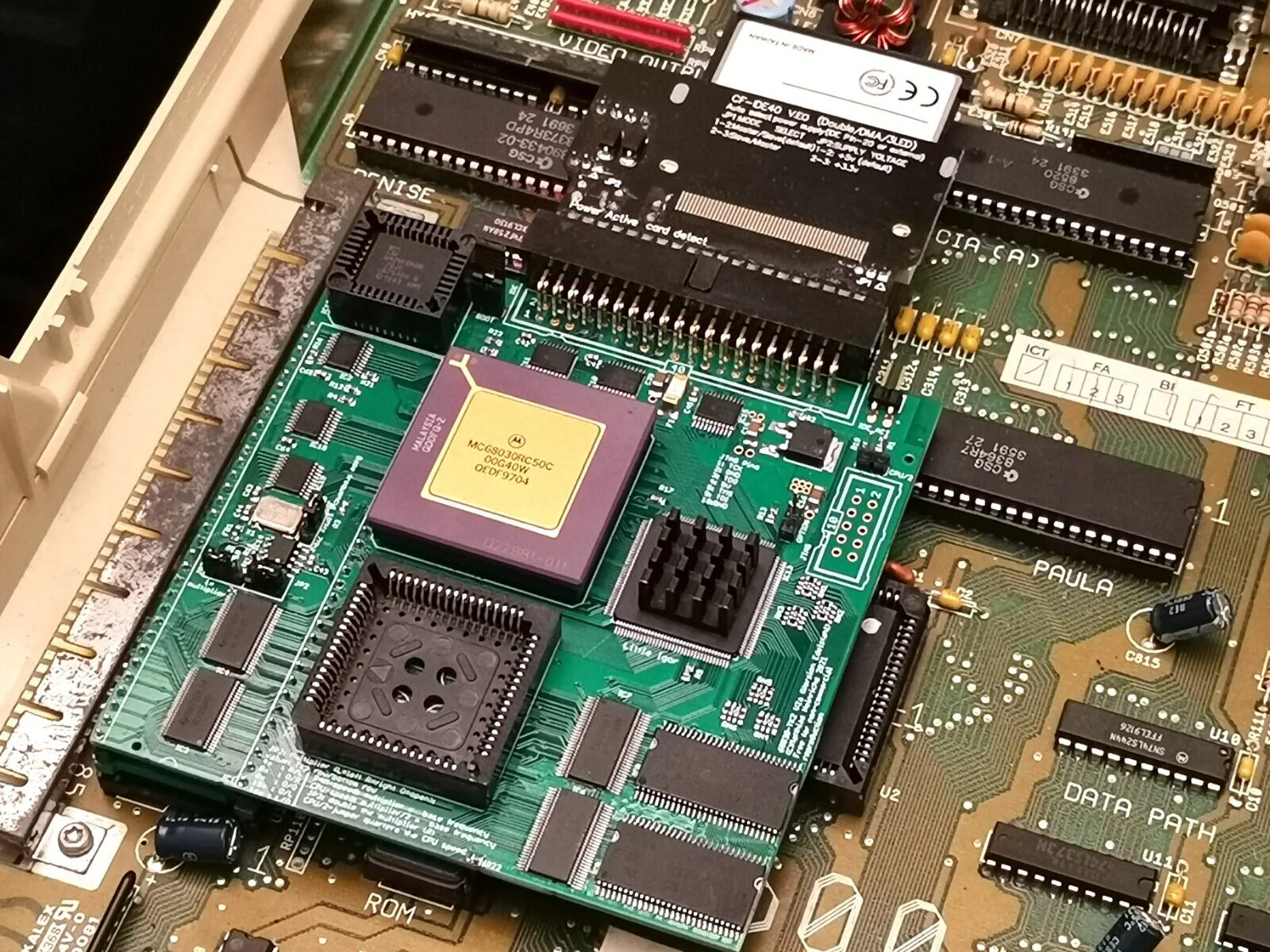

For correct fitting & connecting see the pictures
We are NOT responsible for your mistakes during installation
If you have any doubts, please ask
Brand new and high quality
Standard IDE interface, true-IDE mode, and support DMA-33 transfer mode
On-board LED indicators for power-on and compact flash access
Voltage selection for +3.3V or +5V compact flash
Master or slave mode selection
Power input: +5V, floppy disk drive power connector
Fully compatible with Compact Flash Type I, Type II, and Micro-drive 40-way (2.54mm) standard
This adapter does NOT support hot insertion of CF cards
